- 50m powered by one end with same brightness
- 42V-50V, wide input voltage range
- Longer for strip using, longer for wiring, higher efficiency with 48V system
- Over heat protected, reverse input protected
- CRI90+, 95+ optional
- NA/ET/EF IP process
- Warranty: 5 years
SPECIFICATIONS
- Product Code
- Input voltage
- CRI
- Max.power
- Power range
- Rated current
- Typ.power
- IP Rating
- On-off times
- Max.length

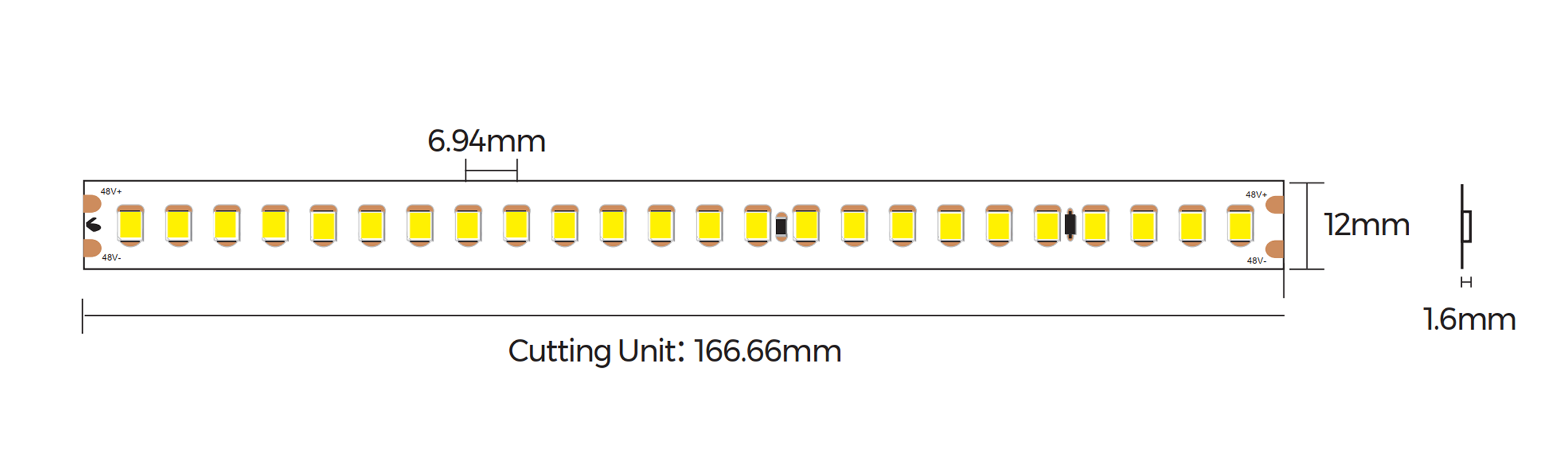

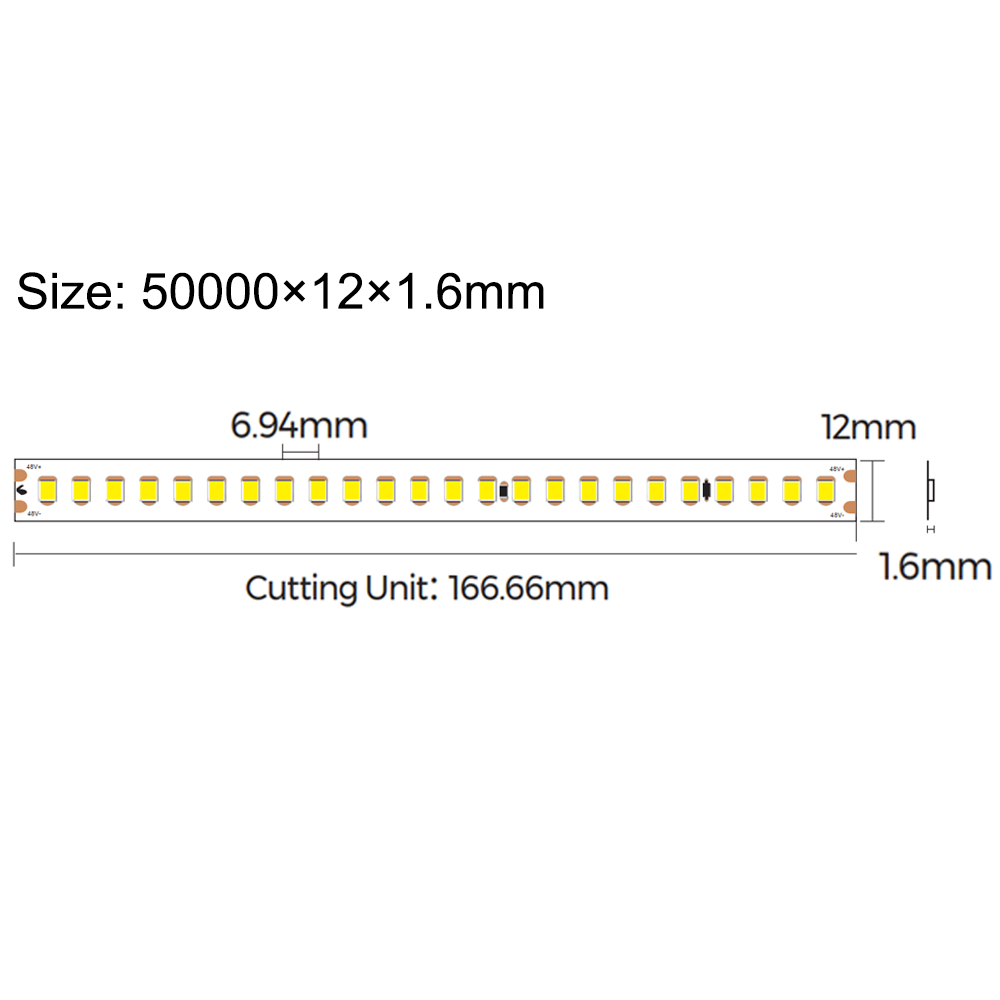

- Cutting unit
- LED pitch
- Min. bend diameter
- Mounting
- Copper foil
- Warranty
- DS8144-48V-12mm
- DC48V
- 80/90/95
- 5.8W(1m)
- 5.1～5.8W(1m)
- 0.112A(1m) /5.7A(50m)
- 5.4W(1m) /274W(50m)
- IP20(option IP65/IP67/IP68)
- 10000（test times）
- 50000mm
- 24leds/166.67mm
- 6.94mm
- Φ60mm
- 3M tape
- 3oz
- 5 years
