With the combination of PMMA Tube Diffuser and robust aluminium housing, the Waterproof series is going to be an inspirational linear lighting fixture cater-designed for extreme exterior environmental conditions.
Unlike those common linear fixtures, this series is completely waterproof and flexible in length in combination with a seamless joint
The standard linear length per unit is 530 / 1030 / 2030mm
With its advanced structure design, the installation is much easier than common outdoor lighting fixtures
WP series can be widely used for indoor or outdoor wall grazing, landscape, stairs, orientation lighting, window reveals and underground.

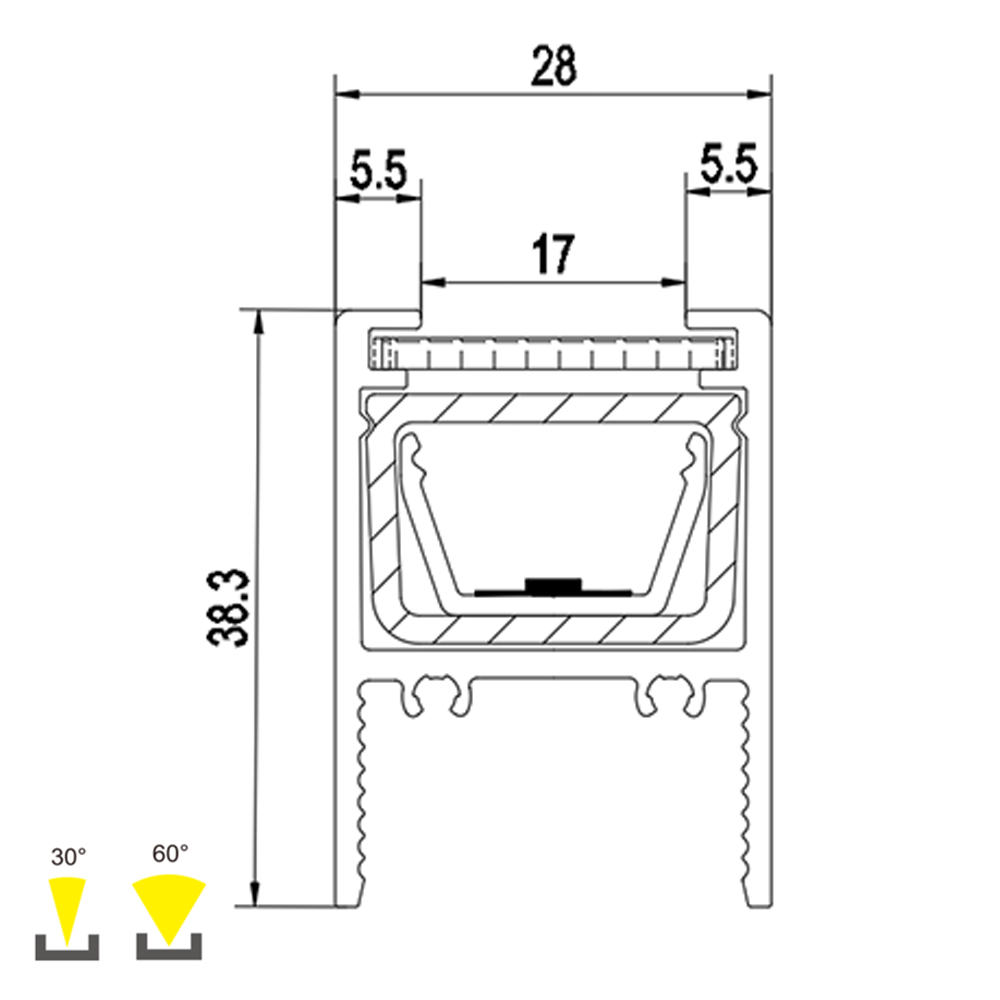

By using 30 ° and 60 ° PMMA lens, the divergent beam is constrained to have stronger penetrability, which can not only meet the long-distance accent lighting under specific requirements but also make the light more evenly covered

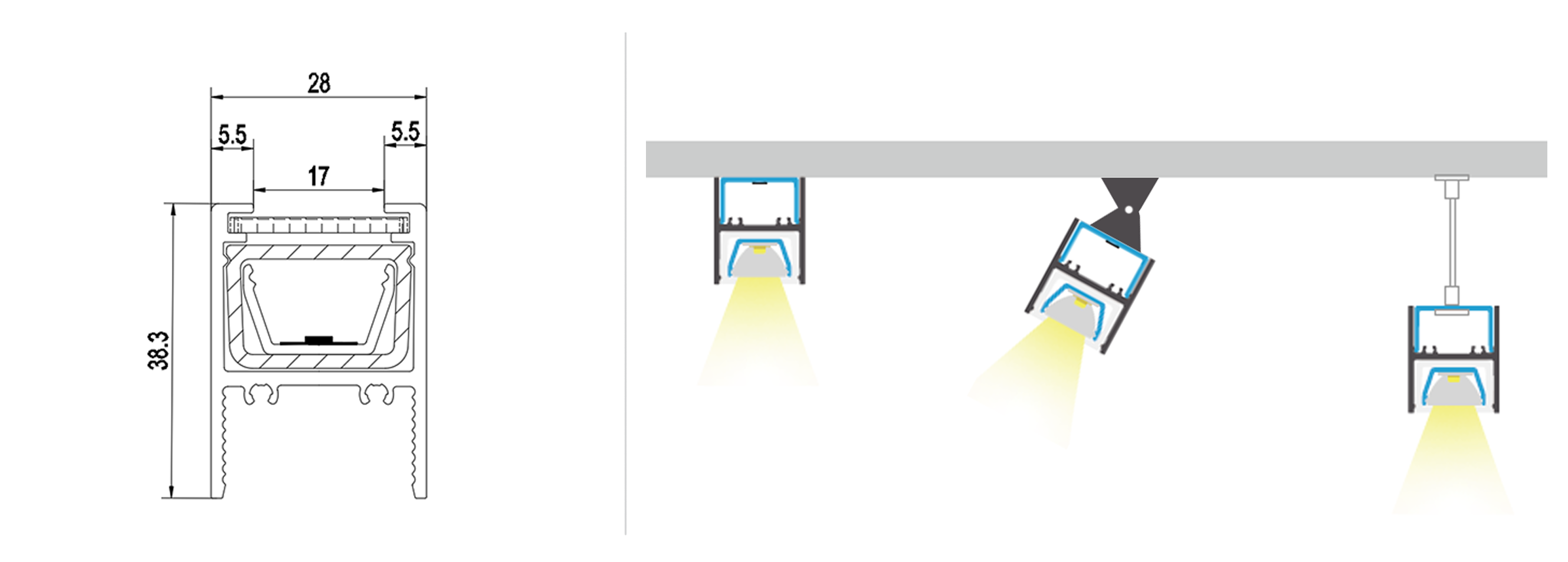

Multiple methods of installation and matching accessories are available
By using polycarbonate honeycombs as a grid in front of the PMMA diffuser to contain the peripheral light and avoid glare
SPECIFICATIONS
Product Code
Installation
Profile Material
Surface Treatment
Accessories
Customized Colour
Diffuser
Diffuser Color
Colour
Length
IP Rating
Beam Angle

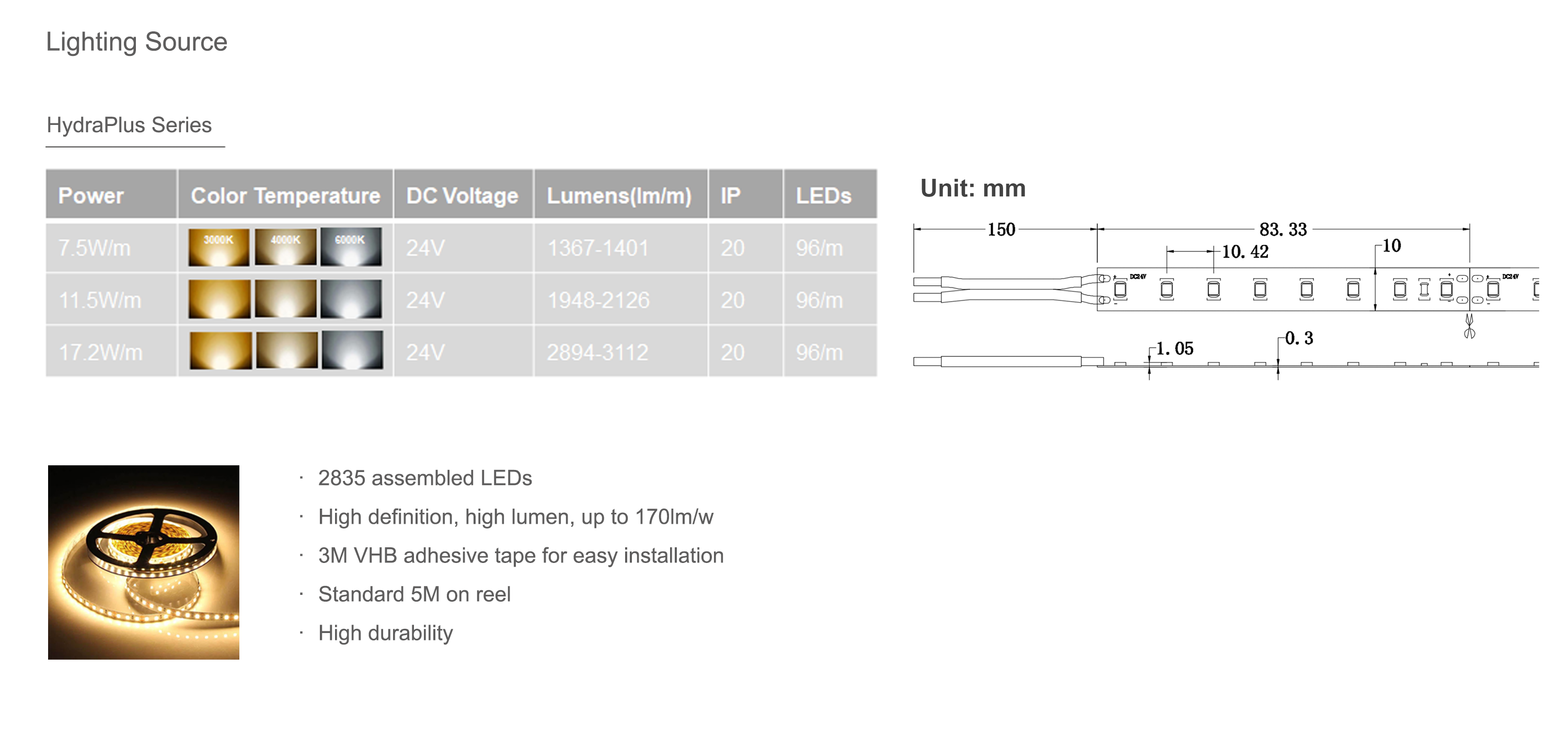

Light Source
CCT
WP3-T

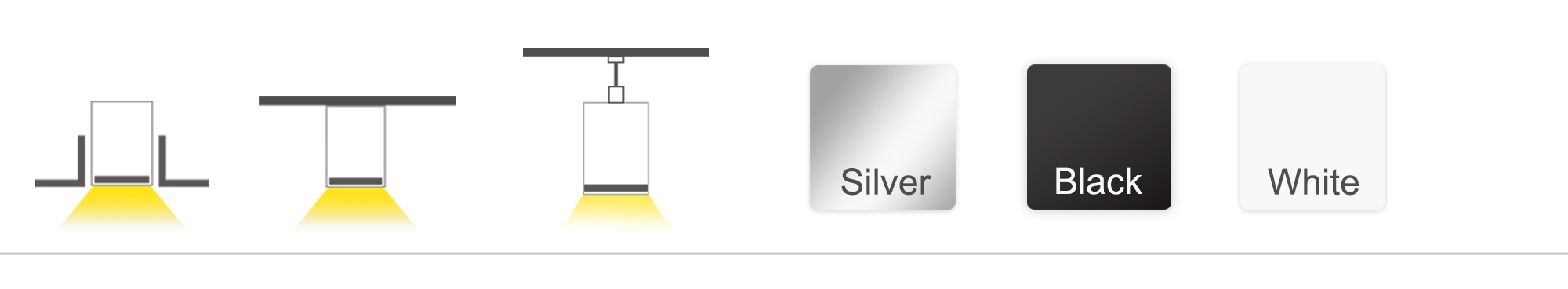

Surface / Recessed / Pendant
6063-T5
Silver Anodized Aluminium
Surface Mounted Clips
Color Anodized/Powder Coated/Spray Painting
PMMA
Clear
Silver / Black / White / Custom
Standard 530 / 1030 / 2030mm (can be cut to suit any length up to 2030mm/unit)
